10" L7T 4 Ohm
The L7T 10-inch Subwoofer is a true-bass, thin subwoofer with a pair of 4Ω voice coils.
With our custom SoloKon™ technology and the L7T’s unique interior support system, the sub sounds fat – but keeps it thin! Match any L7T thin sub with a KX-Series mono amplifier for an outstanding combination of power and size.
Features:
- Uses a Sealed or Ported Enclosure
- Square Sub Design Moves 20% More Air Than Round Subwoofers
- Easily Mounts Under or Behind a Seat
- Dual Voice Coil Design
- Ribbed Santoprene Surround Resists Heat And Degrading
- Bumped Top Plate For More Excursion & Smoother Performance
- SoloKon™ Cone With 360-Degree Back Bracing
- UniPlate™ Solid Pole Piece & Backplate For Excellent Heat Dissipation
- Durable Steel Basket
Want setup help? Go to KICKERU for a free woofer & amplifier configuration app!

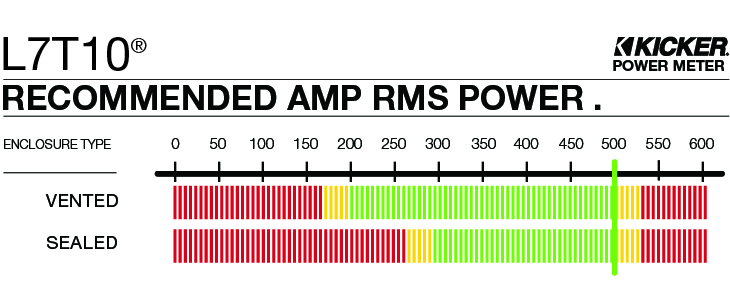

*The L7T 10-inch Subwoofer works best with a sealed or ported enclosure and 500 watts of recommended power. See below for more details.
| Thiele/Small Parameters |
 46L7T104 T/S Parameters PDF |
| Size (IN.,CM) |
| 10, 25 |
| Impedance (OHMS) |
| 4 DVC |
| Recommended Amplifier Power (watts RMS) |
| 500 |
| Peak Power (watts, per ANSI/CTA-2031-A) |
| 1000 |
| Sensitivity (dB 1w/1m) |
| 85.98 |
| Frequency Response (Hz) |
| 25-100 |
| Mounting Depth (IN.,CM) |
| 3-3/4, 9.5 |
| Mounting Cutout, Square (IN.,CM) |
| 9-5/16, 23.7 |
| Min Rec Sealed Box Volume (CU. FT., Liters) |
| .4, 11.3 |
| Max Rec Sealed Box Volume (CU. FT., Liters) |
| 1.25, 28.3 |
| Min Rec Vented Box Volume (CU. Ft., Liters)** |
| 1.25, 35.4 |
| Max Rec Vented Box Volume (CU. Ft., Liters)** |
| 1.75, 49.6 |
| What's in the box? |
| one 10-inch subwoofer, one owner's manual, two stickers |
*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.
**Port Volume Excluded.
Due to continual developement, product, and specifications are subject to change without notice. Stillwater Designs and it's agents are not responsible for typographical errors.
