12" 4Ω Marine Subwoofer
Цена: 14 720 RUB

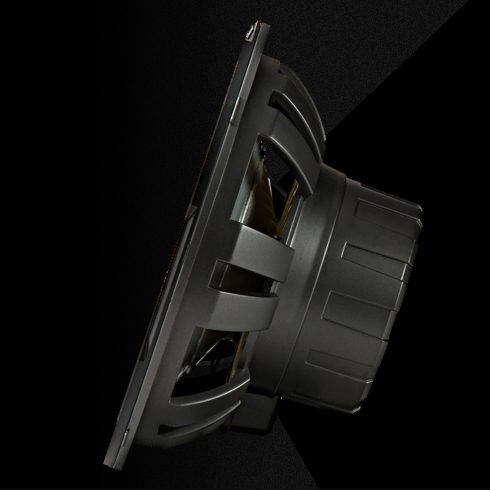

The KICKER® KM 12-inch Marine Subwoofer makes serious bass in a sealed or ported enclosure. Made to take the power and the weather, this sub is custom made to bump in your boat.

SHOCK WAVES

Packed with features and made for marine, KICKER gives you the deep, loud bass your boat needs with the KM Series of subs.

    FEATURES
  • Four-Ohm Voice Coil
  • Injection-Molded Polypropylene Cone
  • Co-molded Santoprene® Surround
  • UniPlate™ Back Plate And Pole Piece
  • Thick Tinsel Leads
  • Large Ceramic Magnet
  • Polymer Basket Resists Corrosion
  • Protective Terminal Cap
  • Stainless Mounting Hardware Included
  • Meets or Exceeds ASTM Standards for UV and Salt/Fog Exposure
    (ASTM B117 200 hr. Salt Fog Test) (ASTM G154 400 hr. Accelerated UV Test)

Want setup help? Go to KICKERU for a free woofer and amplifier configuration app!
*The KM 12-inch Subwoofer works best with a sealed or ported enclosure and 175 watts of recommended power. See below for more details.

Specifications
Thiele/Small Parameters
TS Parameters PDF link 45KM124 T/S Parameters PDF
Woofer(in,mm)
12, 30
Impedance (OHMS)
4 SVC
Peak Power (watts, per ANSI/CTA-2031-A)
350
Recommended Amplifier Power (watts RMS)
175
Sealed Enclosure Volume Min-Max(ft³, L)
1.25-3.5, 25.4-99.1
Vented Enclosure Volume Min-Max(ft³, L)
1.75-2.25, 49.6-63.7
Frequency Response(Hz)
30-500
Mounting Depth(in, cm)
5.5, 13.9
Hole Diameter(in, cm)
11, 27.9
Outer Diameter(in, cm)
13, 32.95
What's in the Box:
1 - 12" Woofer
1 - Back gasket
8 - Mounting screws
8 - Mounting screw clips
1 - Manual

*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.

**Port Volume Excluded.

Due to continual developement, product, and specifications are subject to change without notice. Stillwater Designs and it's agents are not responsible for typographical errors.
